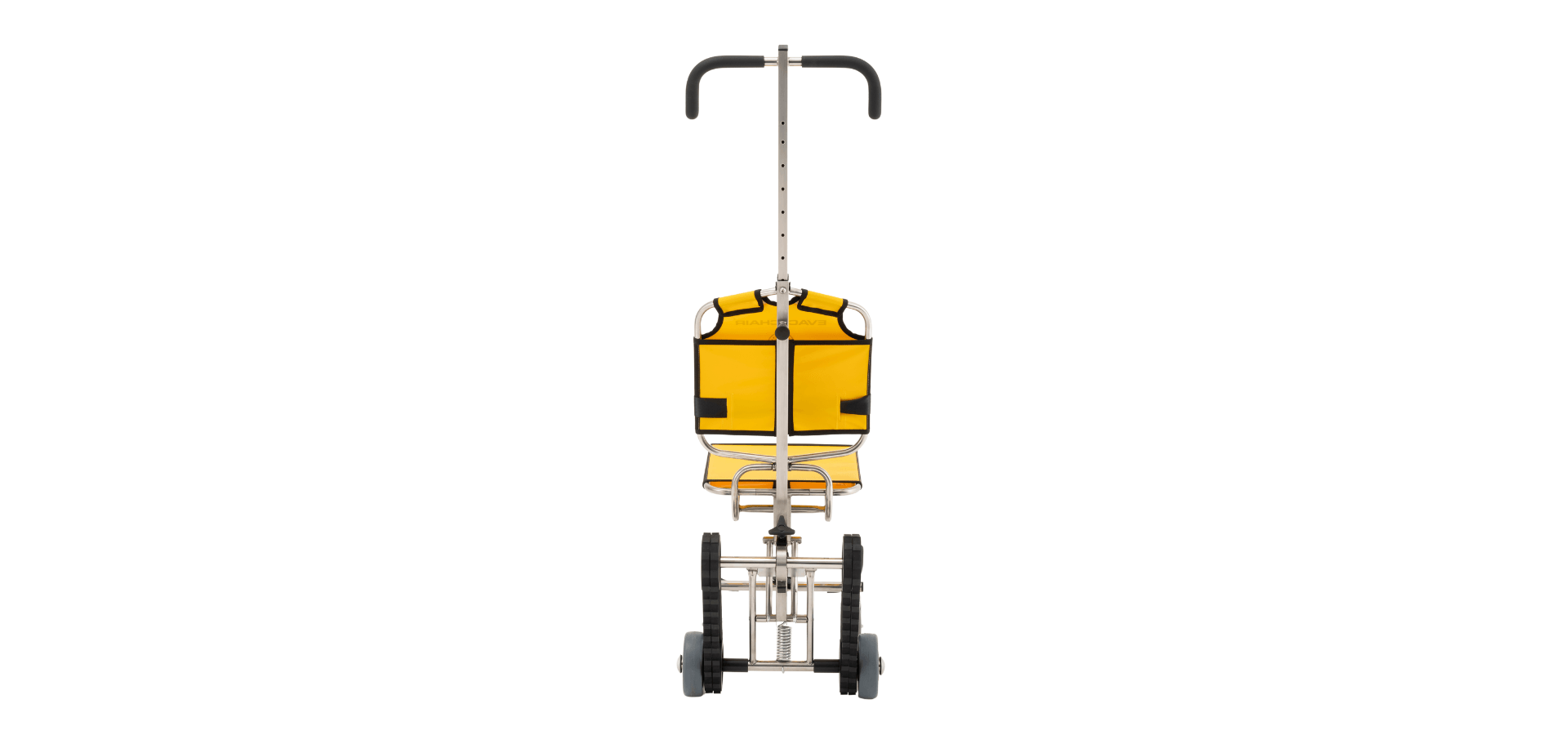

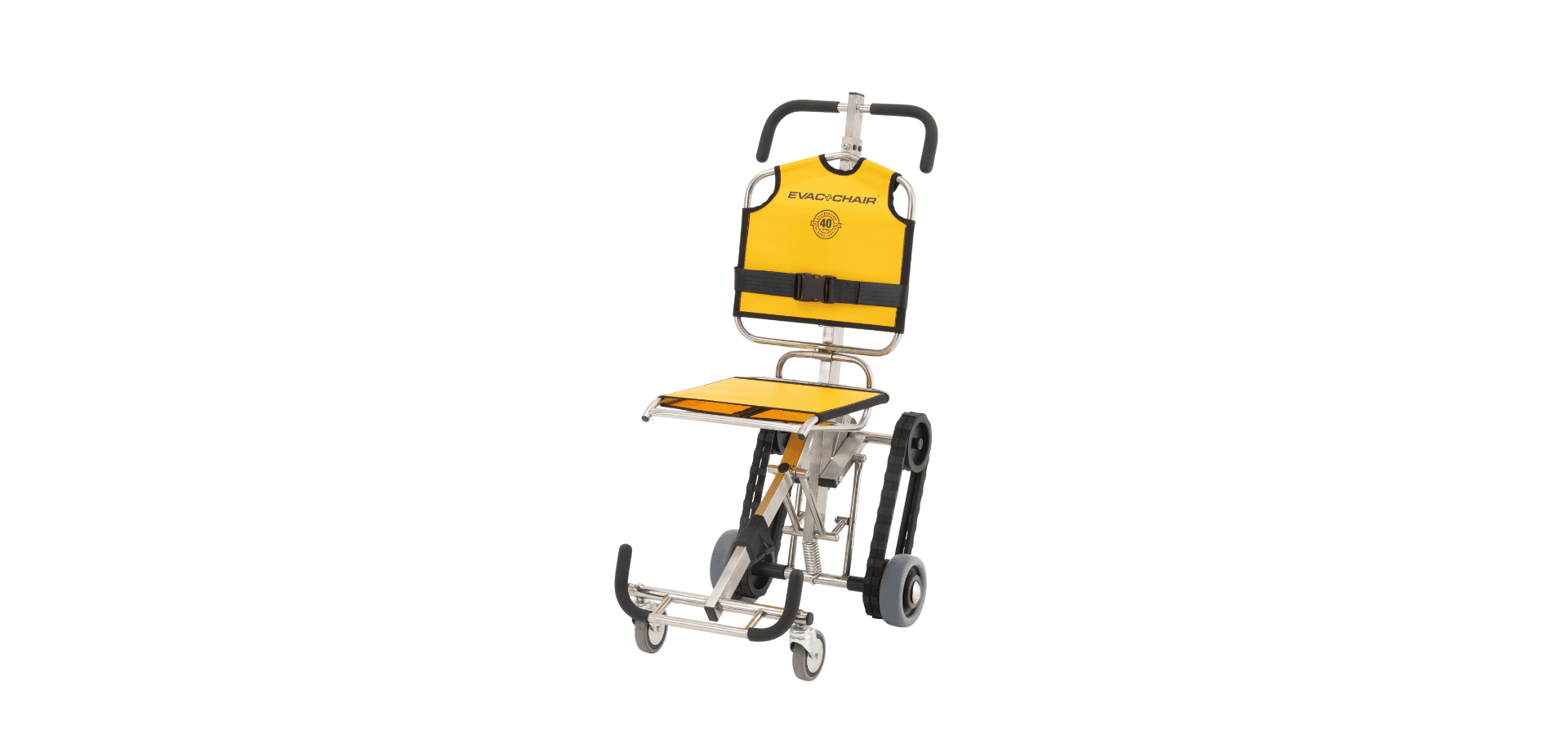

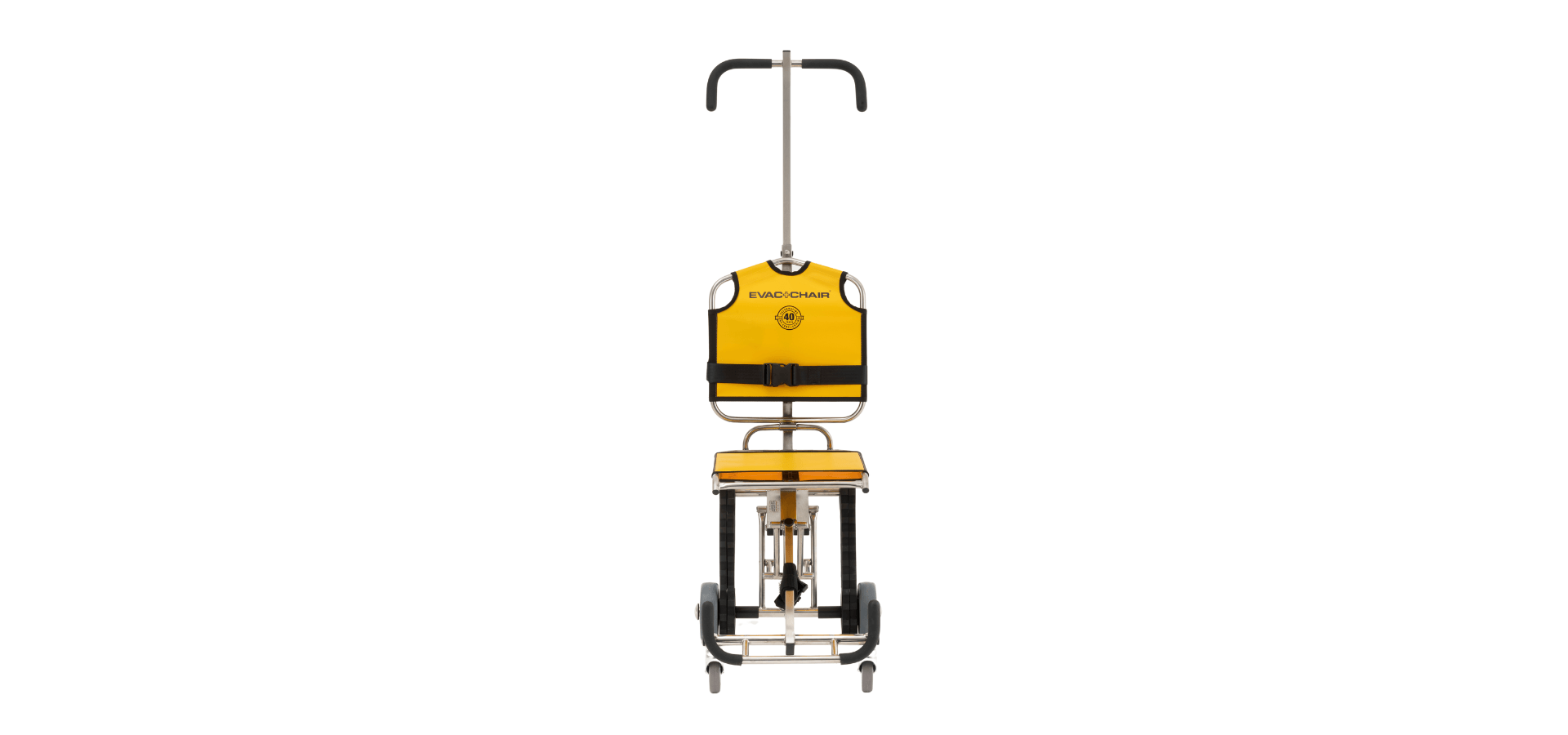

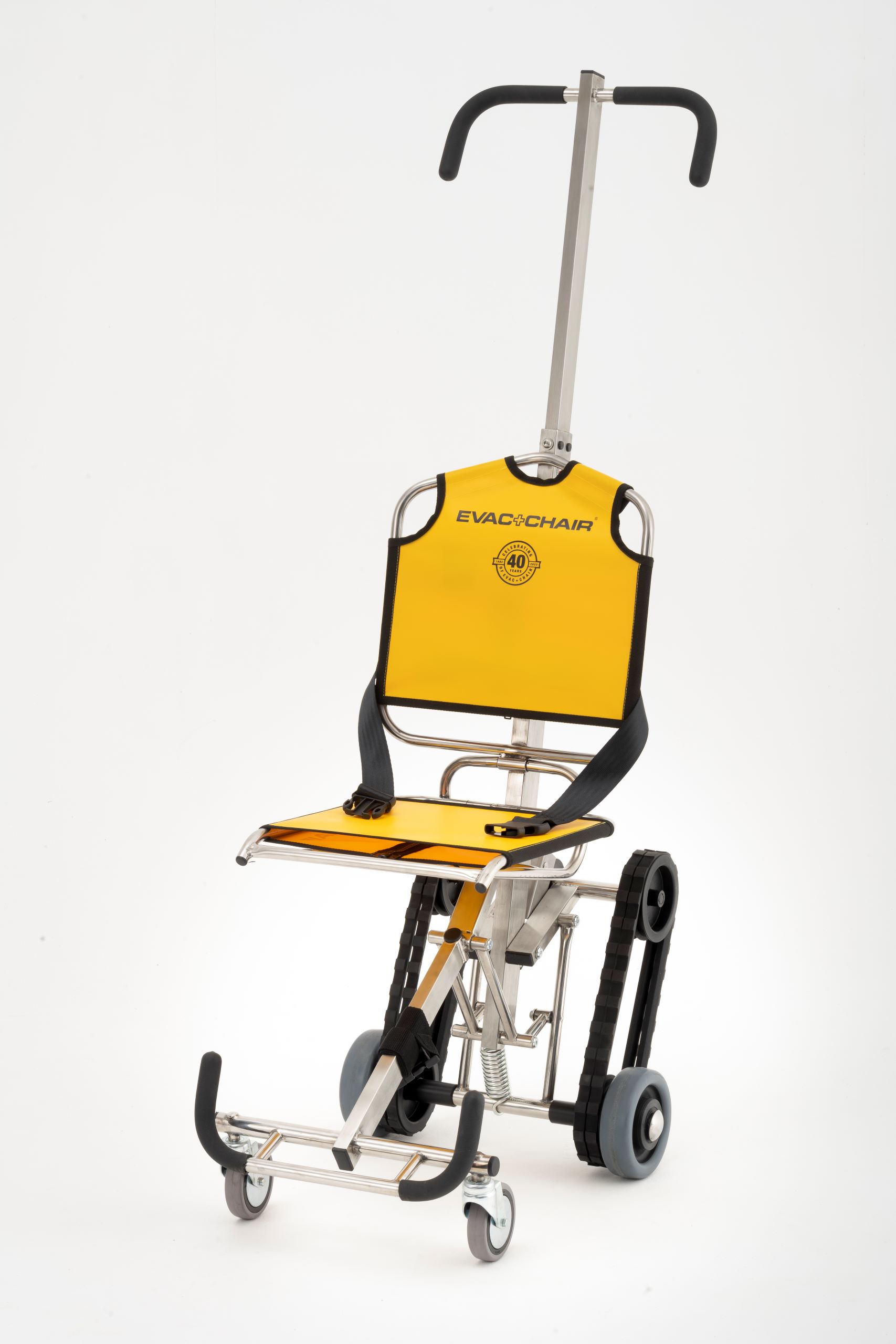

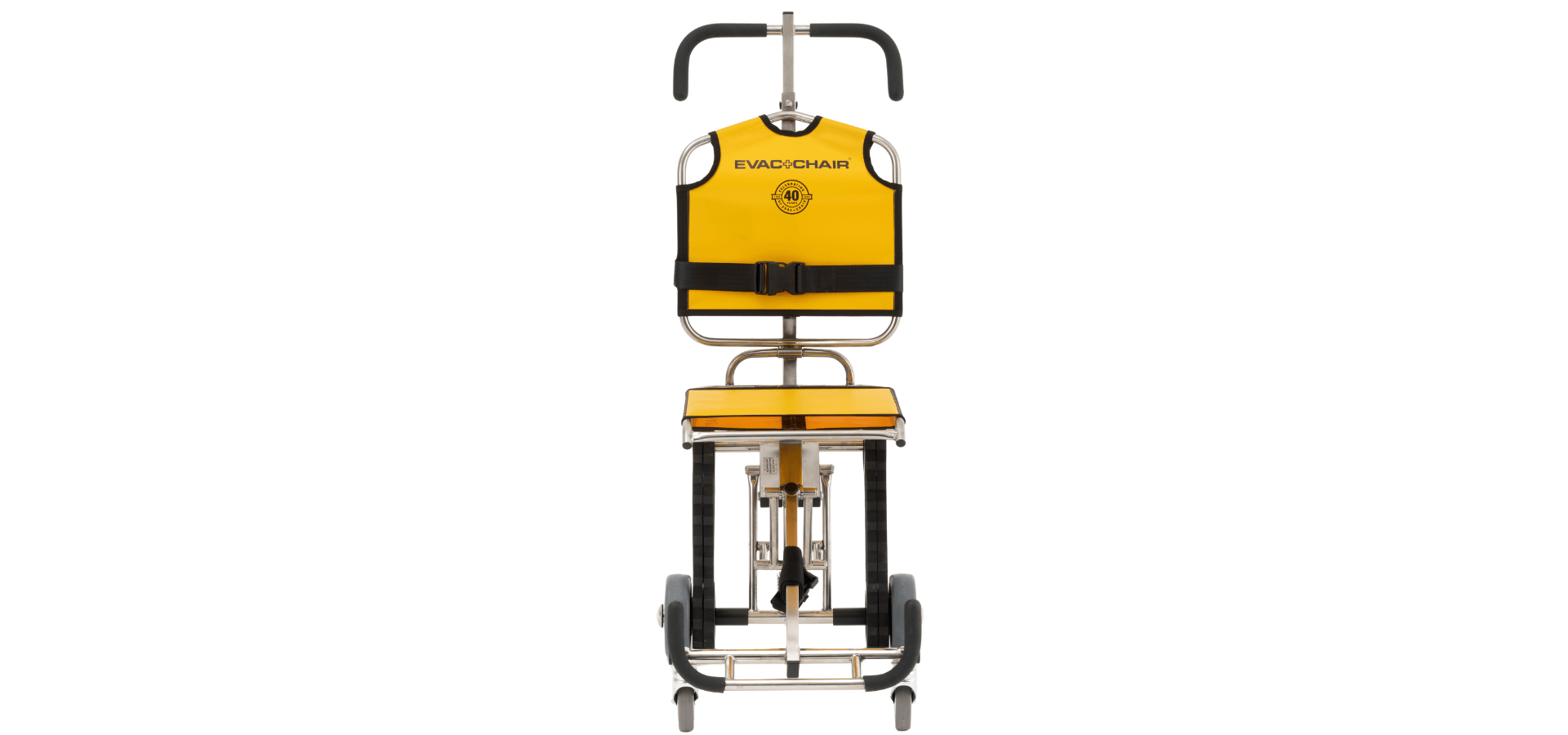

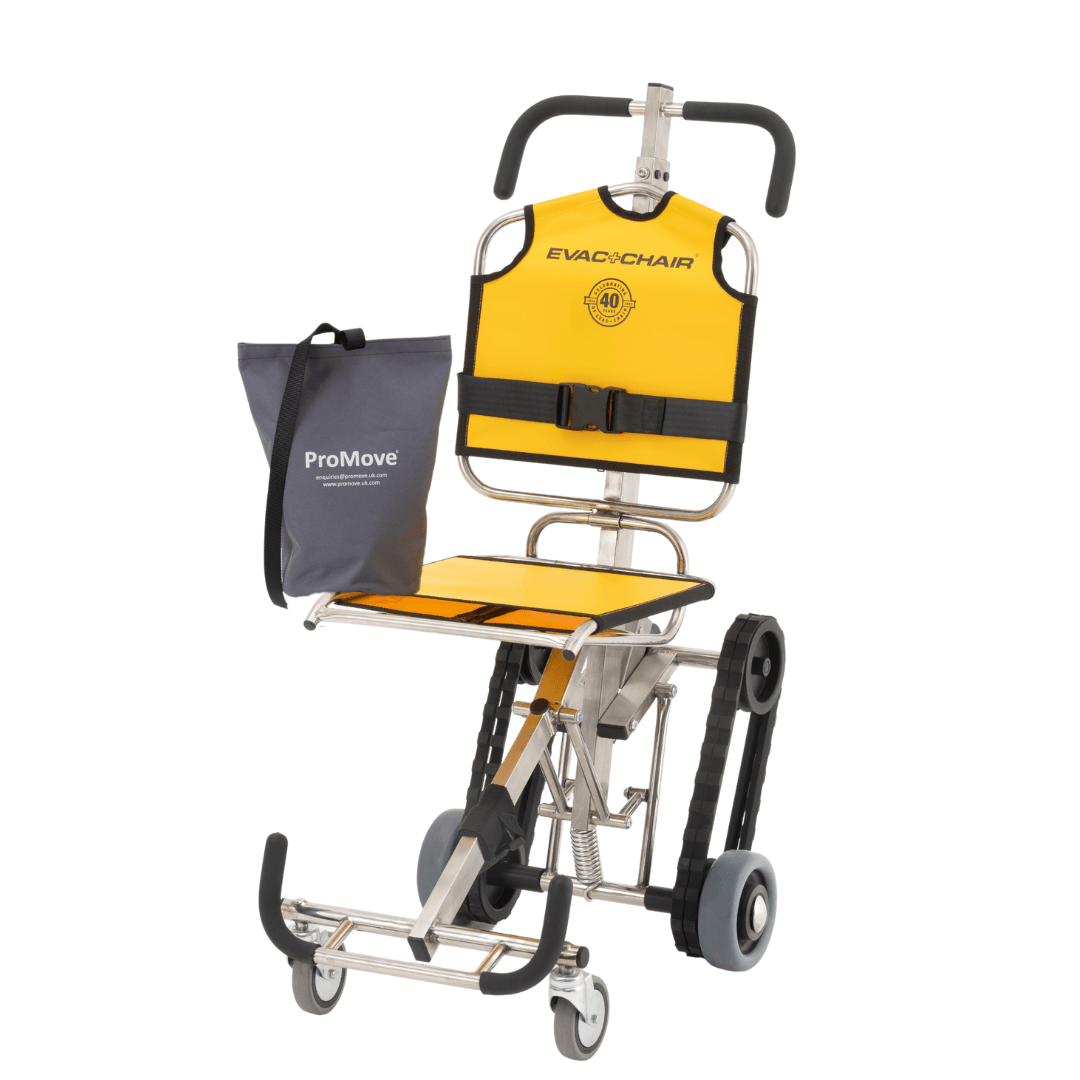

Evac+Chair IBEX
Adaptable Evacuation Chair
The Ibex is a durable evacuation chair, supporting two-person operation with a payload capacity of 159kg. Flexible and adaptable for efficient stairway ascent and decent in a range of diverse environments. The Ibex excels navigating spiral and narrow staircases typically present in historic buildings or areas with limited available space. Featuring a manual brake system and telescopic handle that are both adjustable to accommodate to the passenger payload, allowing the operators to control with ease and manage with confidence.
We're here to help
Should you require any further assistance or have any questions please do not hesitate to reach out to us.
- Downloads
- Shipping
- Returns
Key benefits

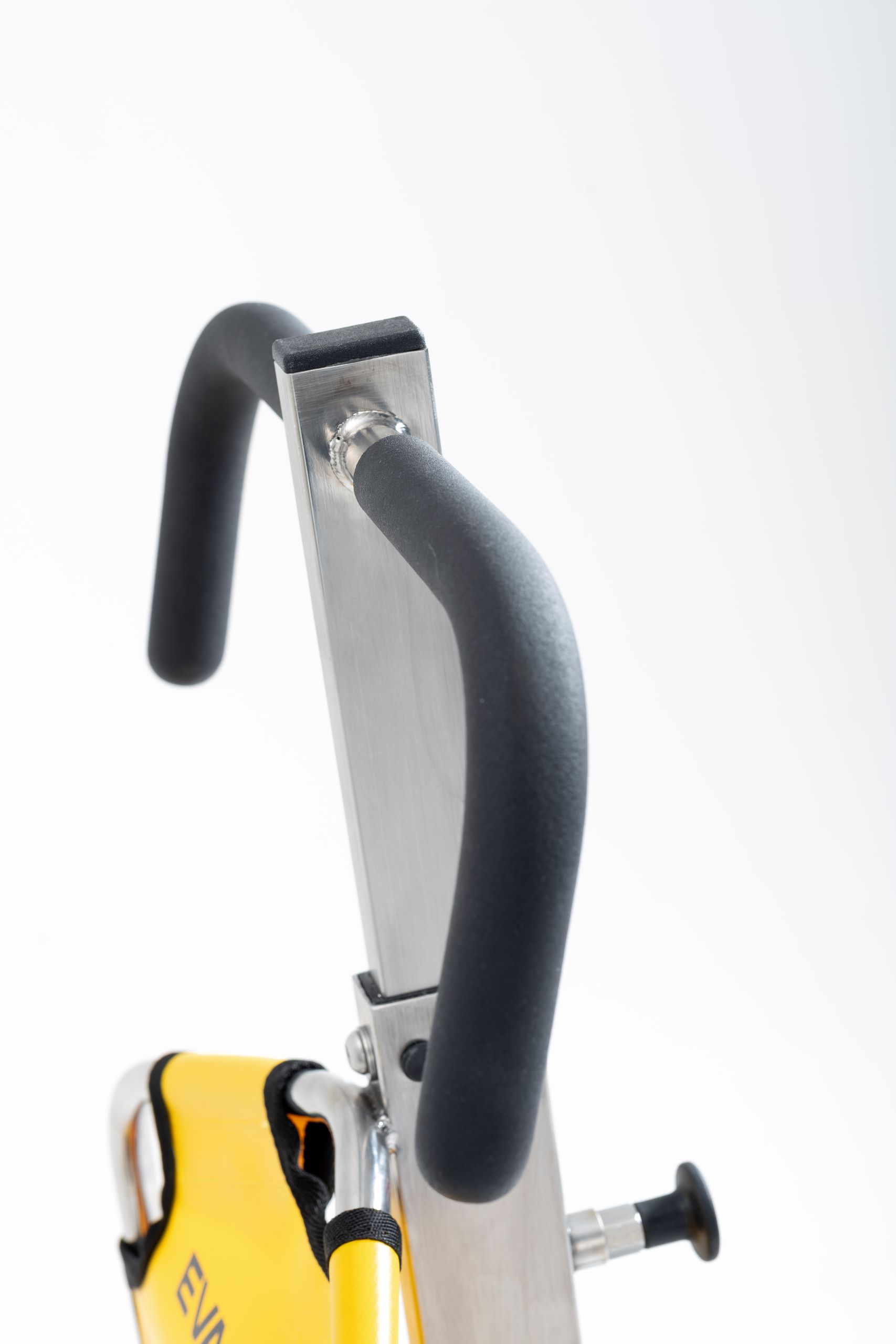

- Telescopic extendable handle: Can be extended or retracted to achieve a comfortable working height

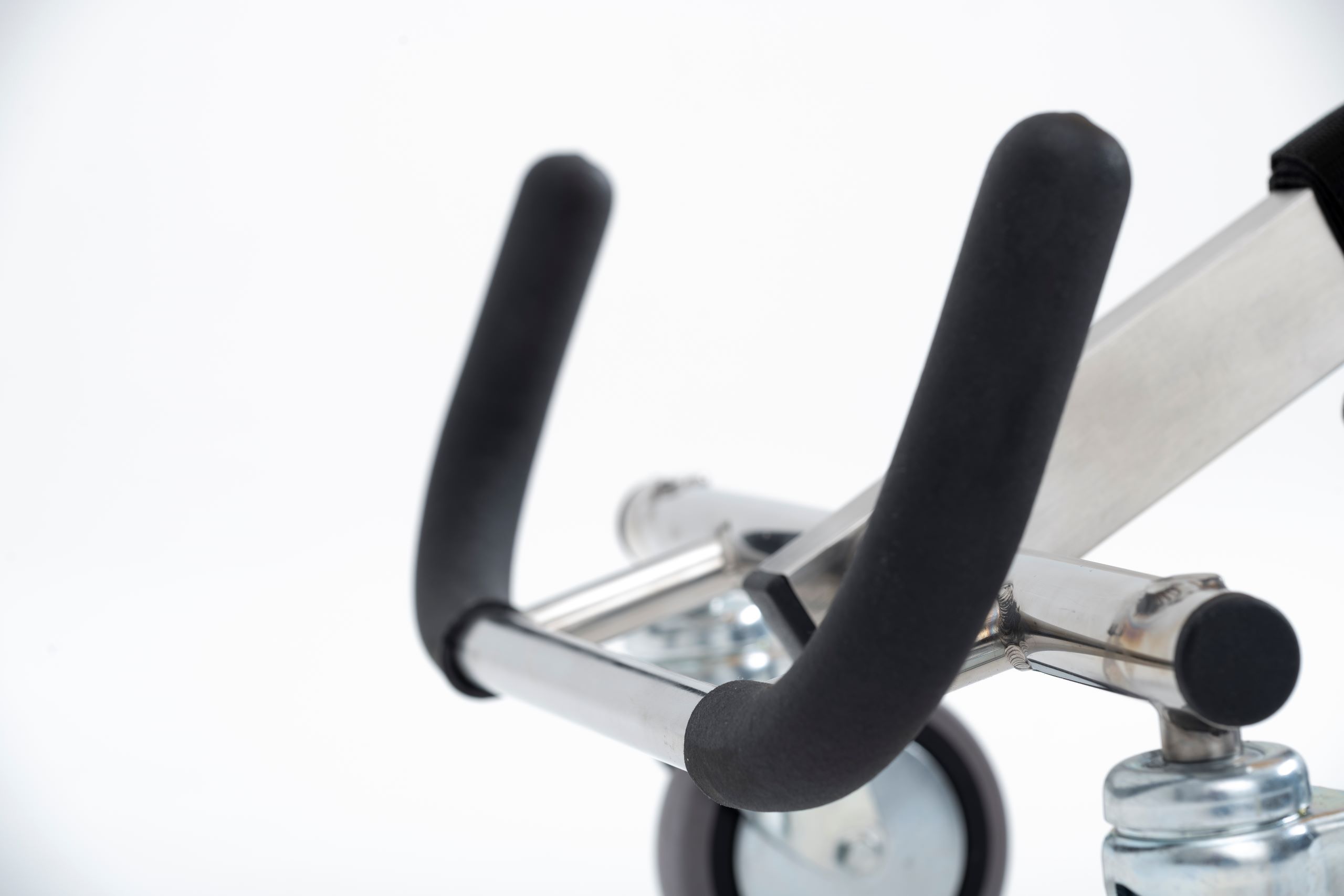

- Front grab handles: Facilitates a safe ascent and descent for the second operator with enhanced control.
- Track brake: Fully adjustable for payload-specific control, increasing belt tension to slow descent.

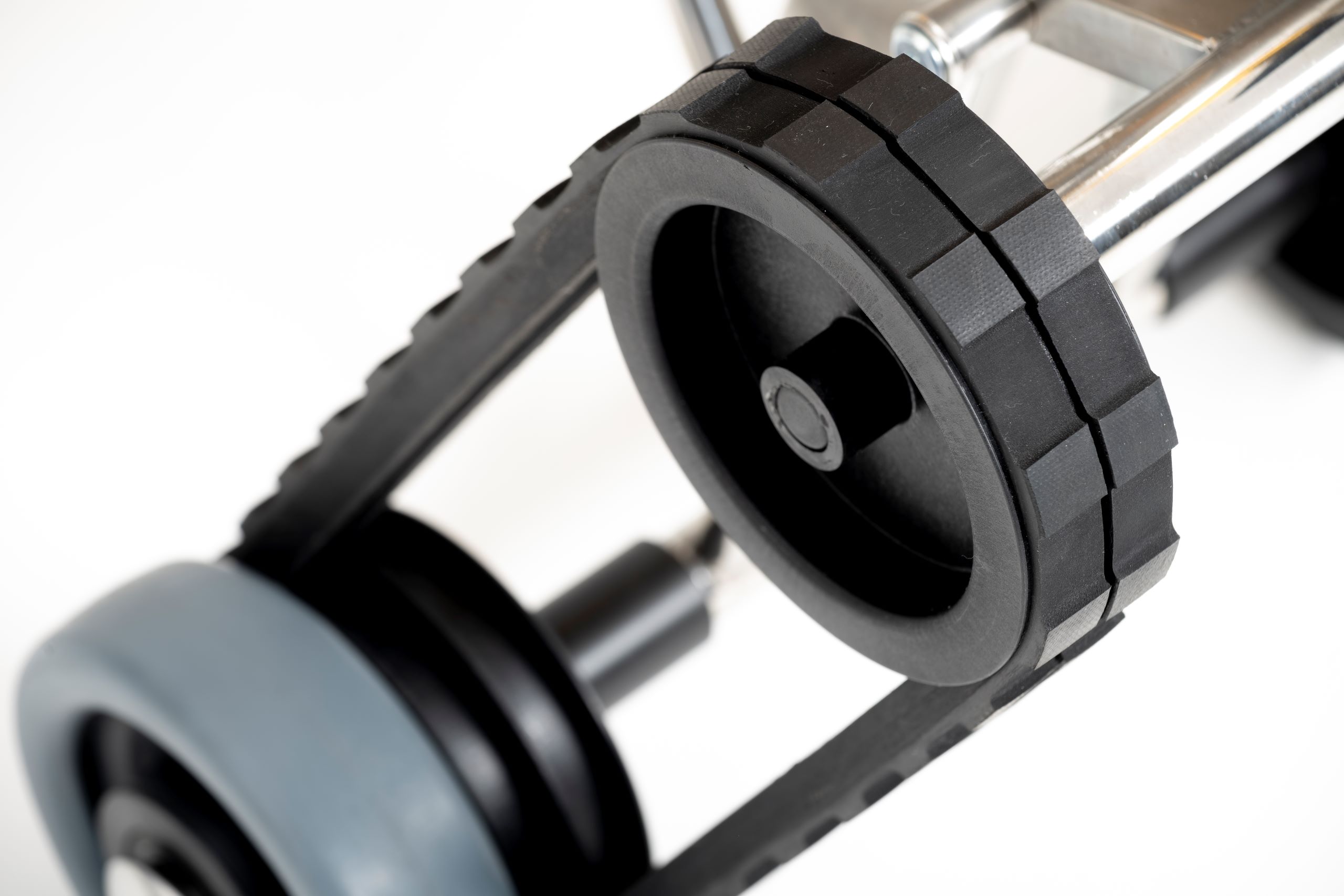

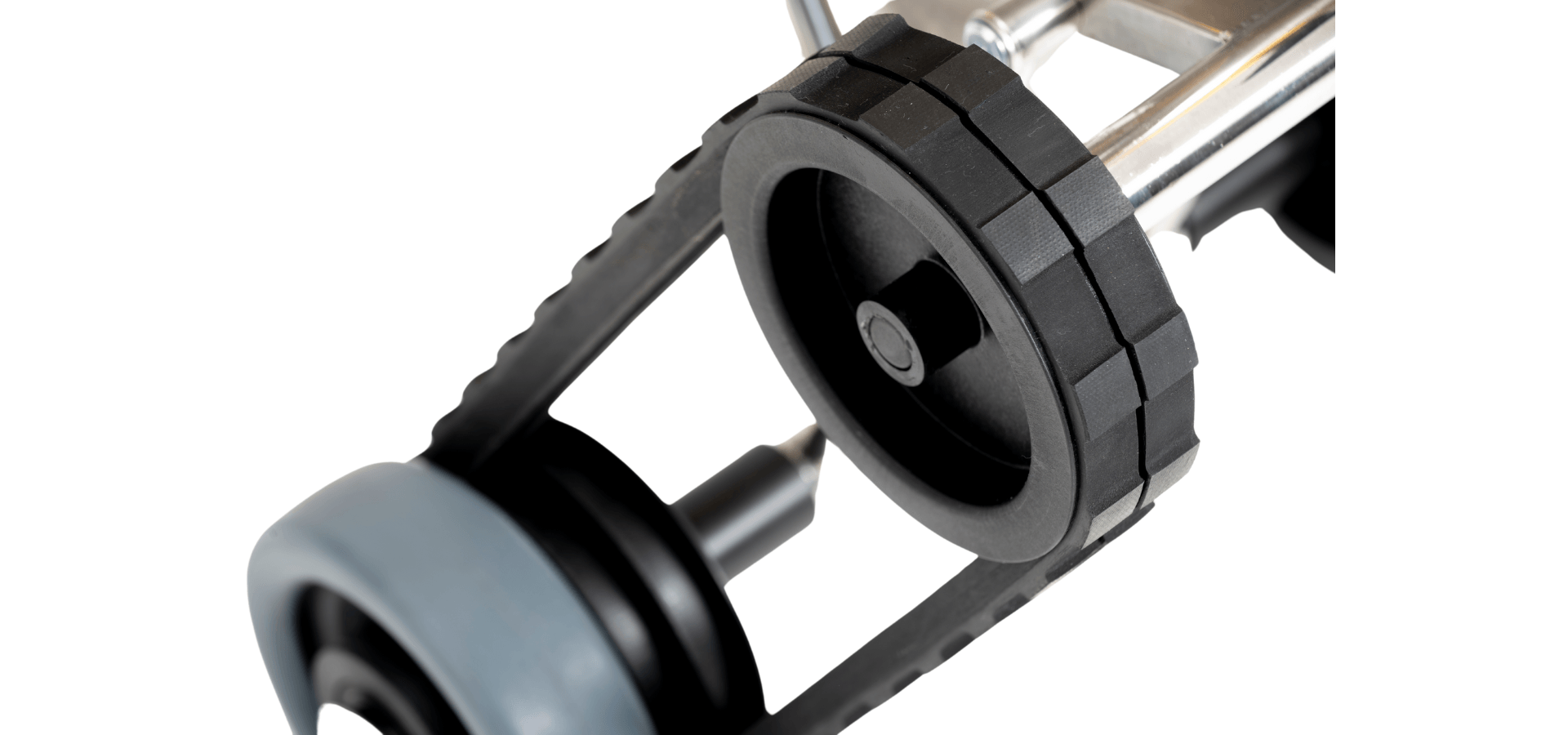

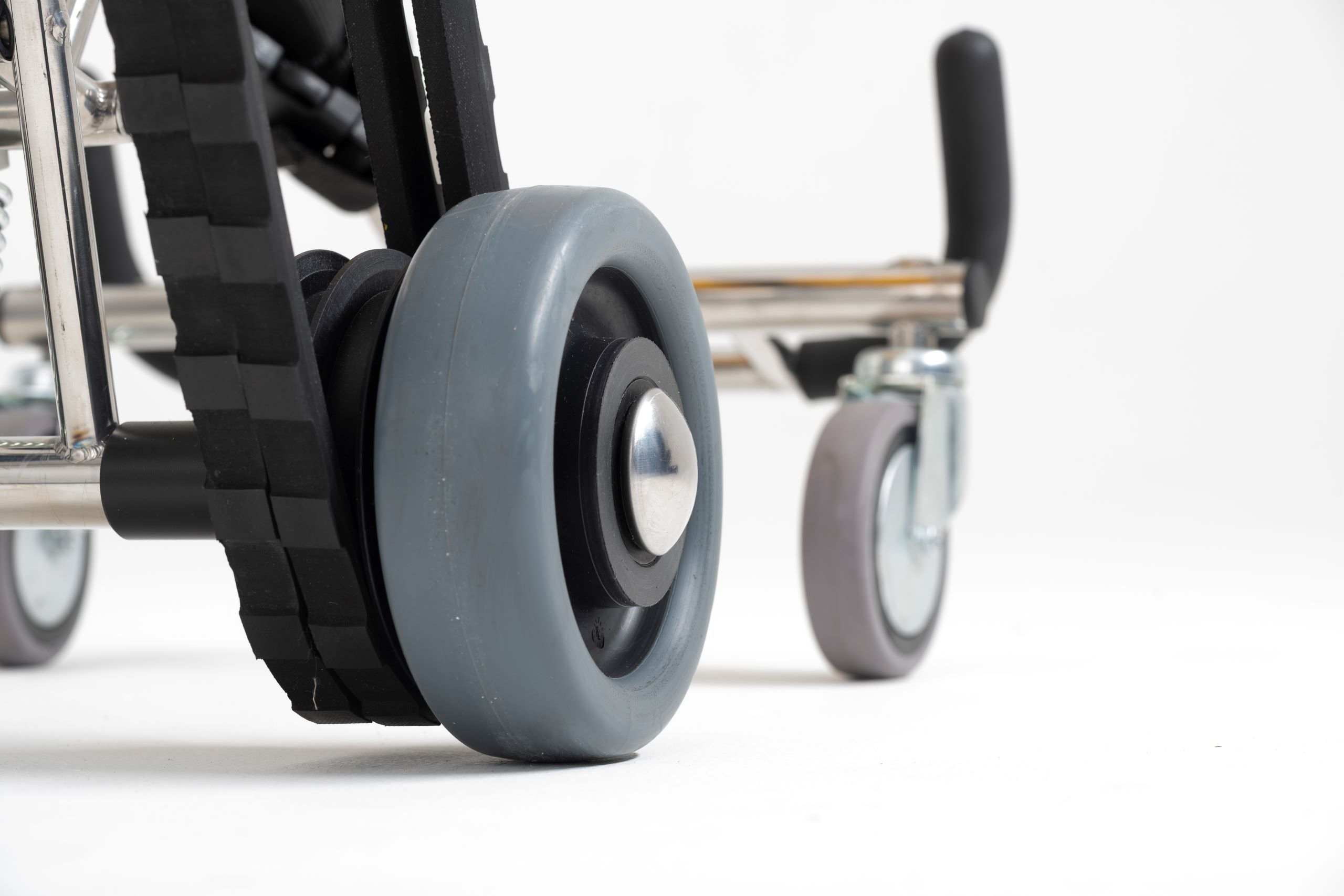

- Unique track belt system: controls step-by-step ascent and descent.
- Stainless steel construction: Superior structural integrity and durability.

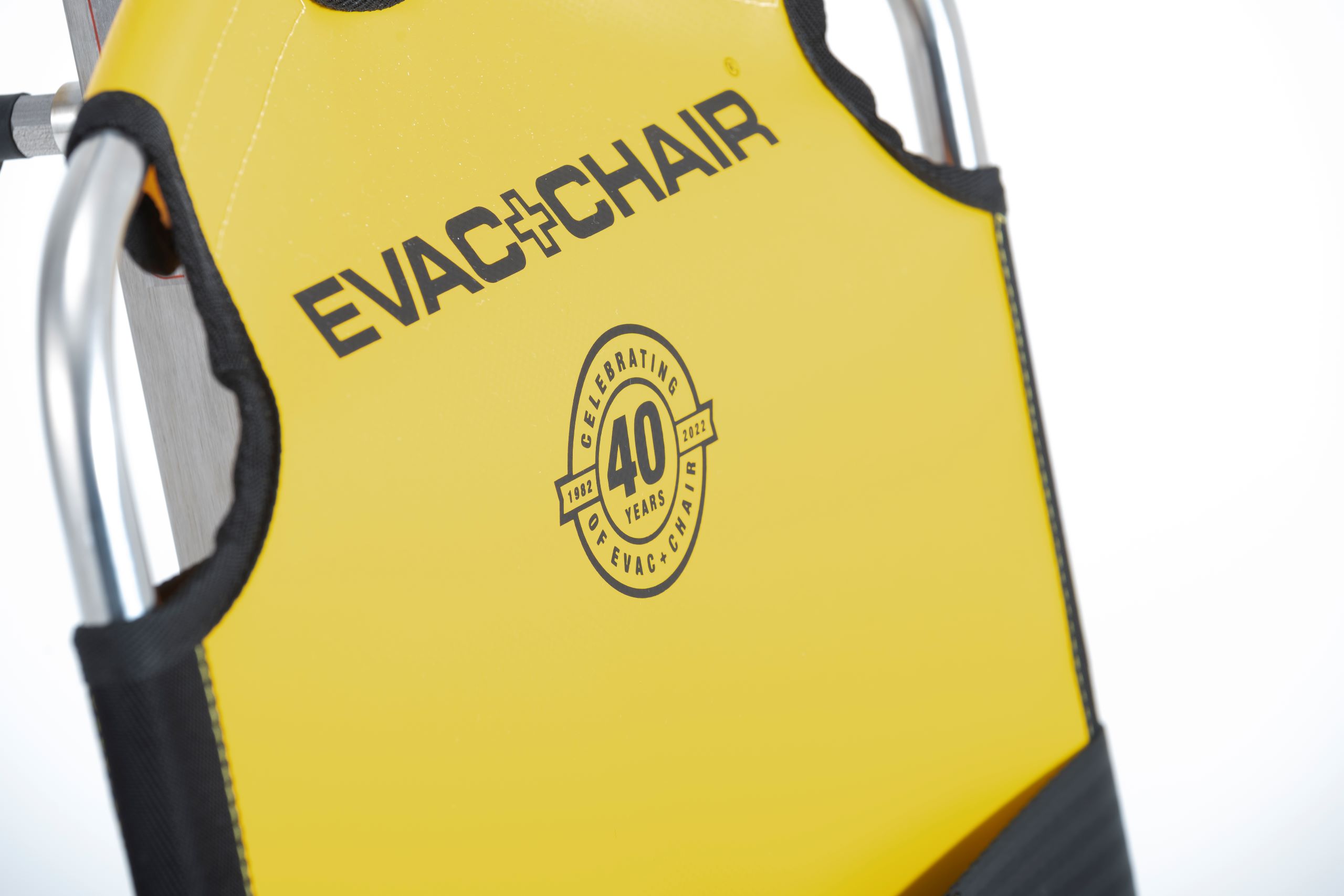

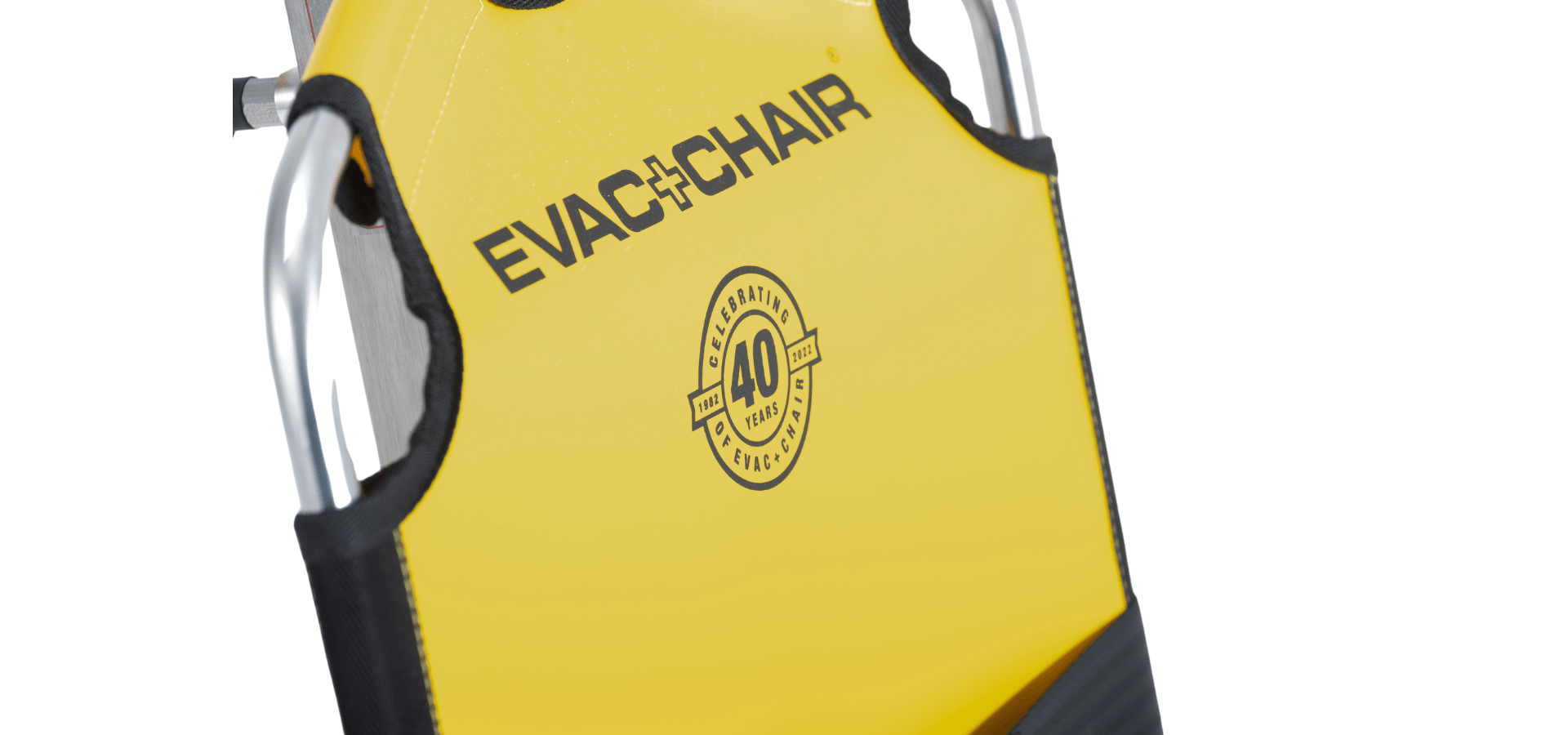

- Detachable seat and backrest: Simple to clean and easily replaceable if damaged or worn.
- Quality assured: ISO 9001 and ISO 13485 accredited.
Technical specifications
- Height: 1140mm folded or 1470mm unfolded
- Width: 465mm both folded and unfolded
- Depth: 400mm folded and 785mm unfolded
- Weight: 14.5kg unladen
- Payload capacity: 159kg
- Suitable for stair angle: 28° – 40° stair angle
Approvals/Accreditations
- CE & UKCA Mark
- Registered Class 1 Medical Device
Includes
- Wall bracket – store your Evac+Chair in an easily accessible location for convenient access.
- Dust cover – protects and preserves your Evac+Chair.
- User guide – provides step-by-step user instructions and how to care and maintain your Evac+Chair.
Book your complimentary evacuation assessment today!
With a team of dedicated evacuation experts, based throughout the UK we are equipped to provide you with unparalleled support, wherever you are.
Our complimentary evacuation assessment will evaluate your building and personnel requirements, taking into consideration the following:
- evacuation route(s)
- stairwell configuration
- direction of evacuation (ascent/descent or both)
- review PEEPs (Personal Emergency Evacuation Plans) or GEEP (Generic Emergency Evacuation Plan)
- refuge area
- assembly point
Based upon our assessment we will recommend the most suitable Evac+Chair solution and its optimal installation point, ensuring it is easily accessible. Giving you complete peace of mind that should the worst happen, you are fully prepared to evacuate everyone.

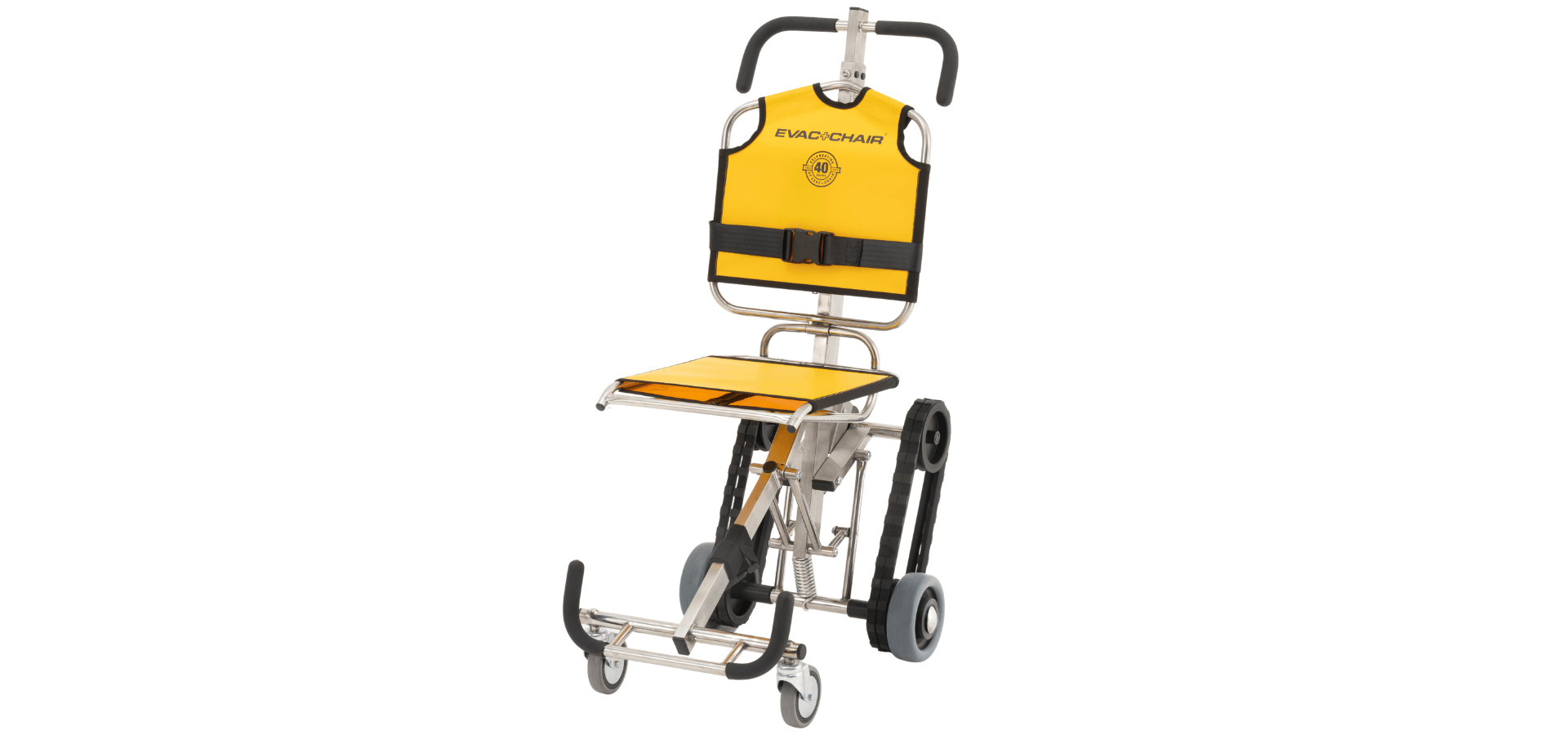

Features of the IBEX

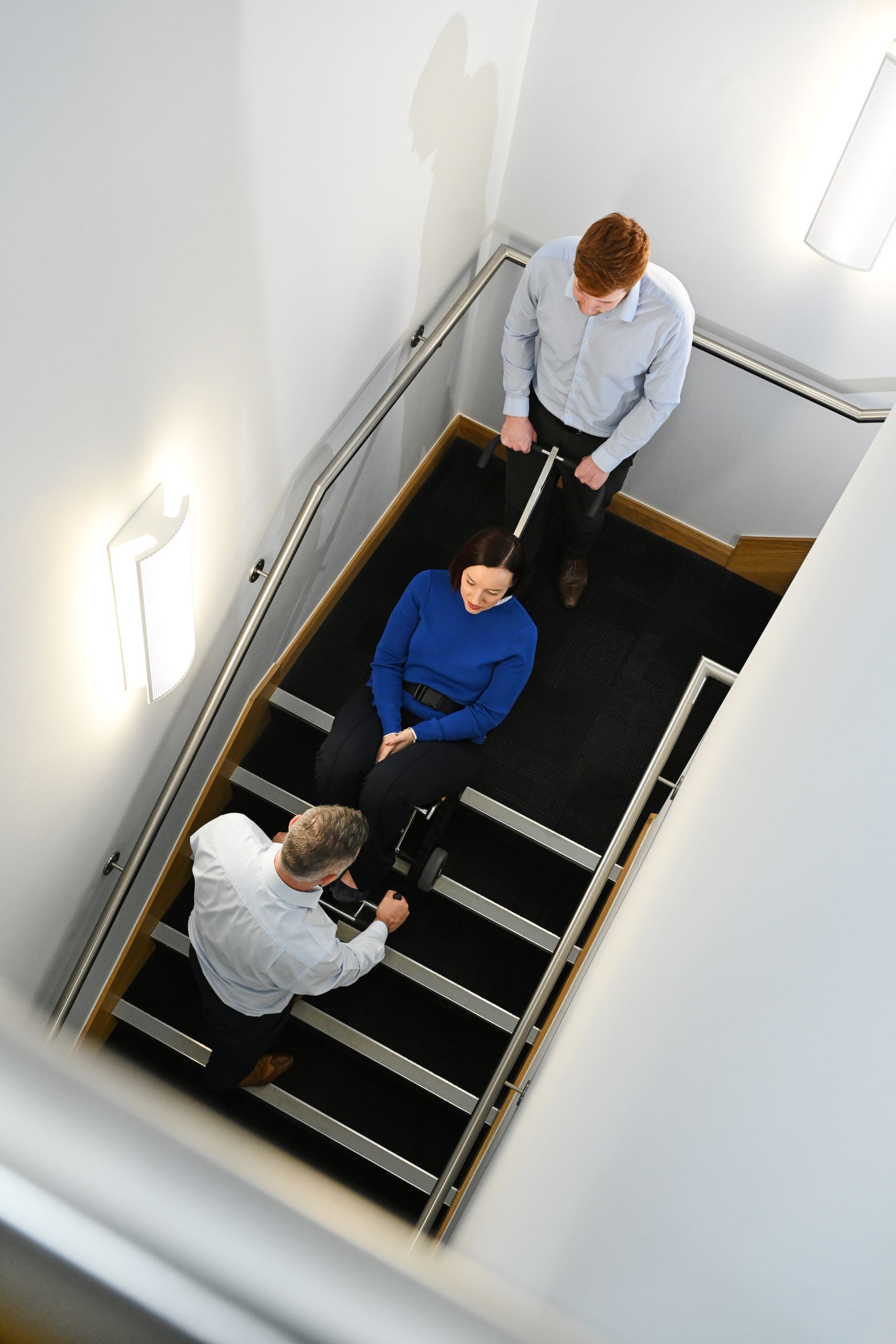

The IBEX is diverse, supporting a range of building demands including spiral and narrow staircases.

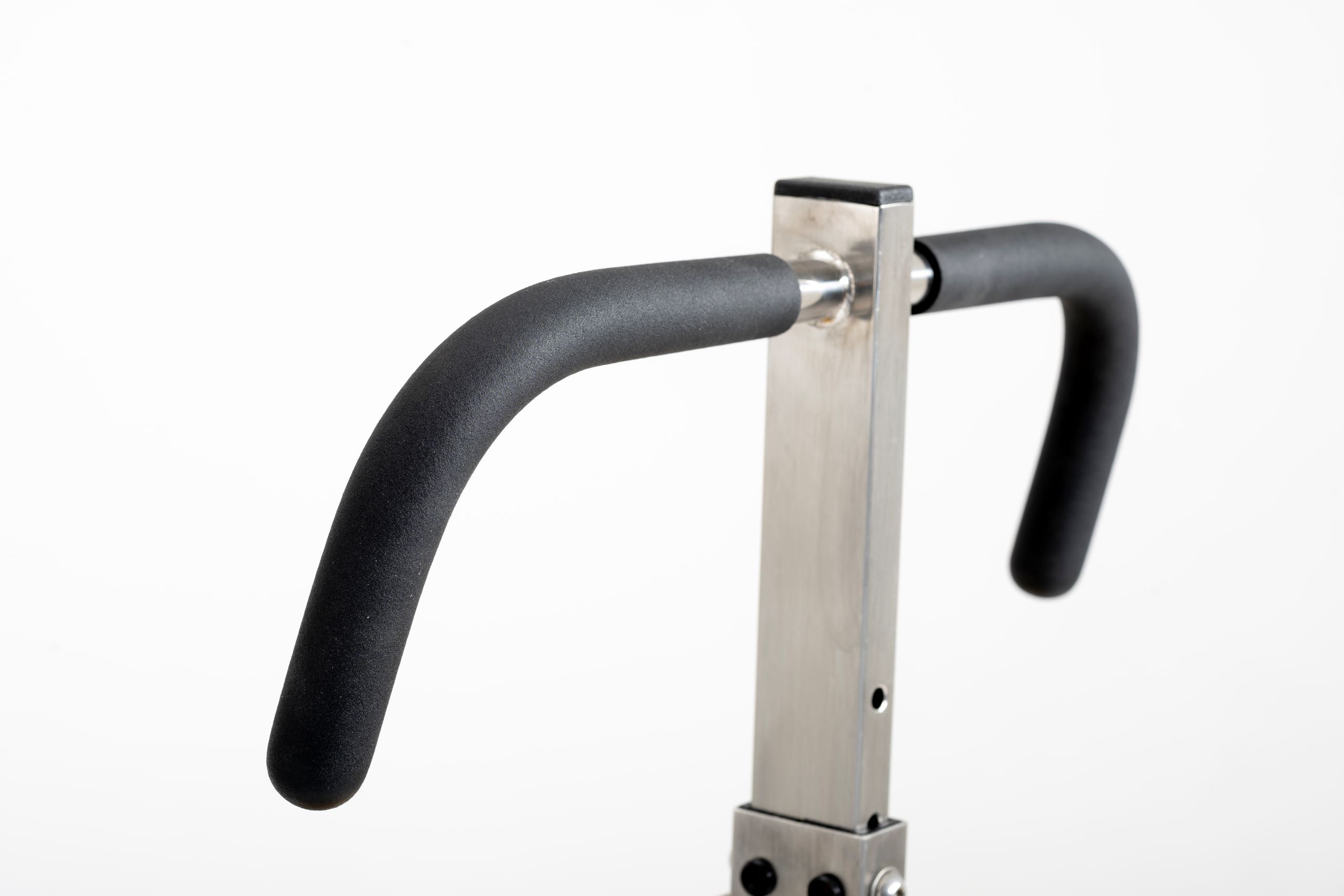

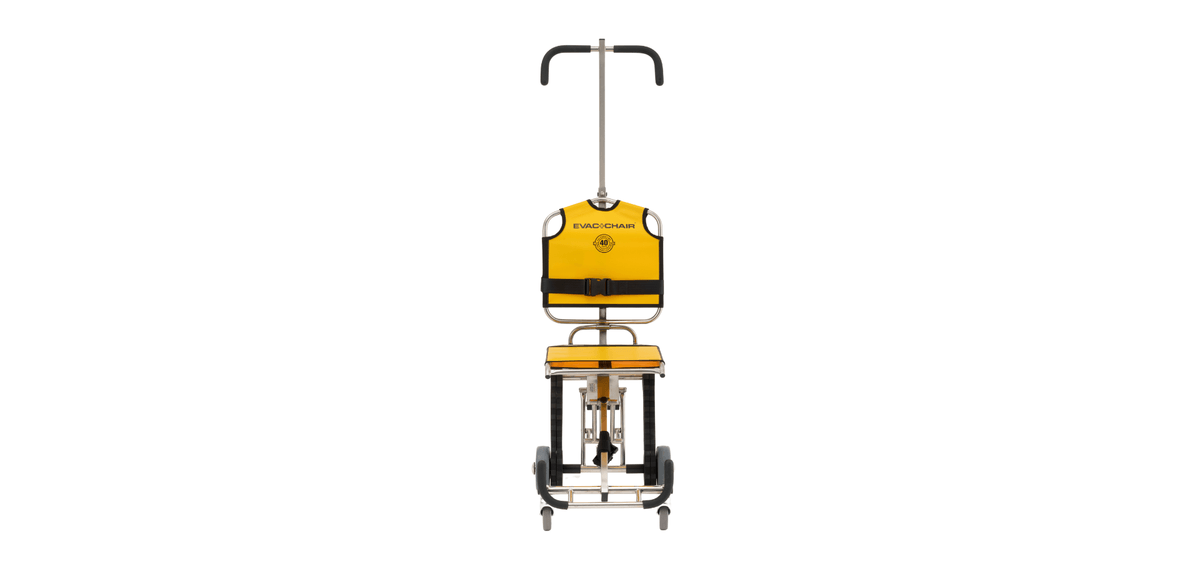

Allows the operator to adjust to a comfortable height ensuring maximum control.
Enables assistance from a second operator for enhanced support and control.
Once adjusted, transfers the payload from the operator to the IBEX reducing manual handling.
Descent speed is controlled by operators working together in coordination.
